| Product Model: LY-A8100NF |
| Order Product
Inquiry Price |
| ■ Product Name: Heavy Duty Conceal Fixed Automatic Threshold Door Seal |
■ Product Function:
usa buy abortion pill name of abortion pill in u read here abortion after first trimester first trimester abortion medical abortion vs surgical medical vs surgical abortion cost hk.onkyo.com how long do you bleed after an abortion in clinic abortion click seroquel notice seroquel link otc inhalers for asthma over the counter asthma inhalers reviews click |
■ Product Feature:
Heavy Duty Conceal Fixed
The High Temperature Smoke, Cold and Hot Air Flow Noise, Draughts, Traffic Noise and Energy Saving conceal fixed automatic threshold door bottom seal with Non-Flammable Silicon Rubber Seal Strip
The spring mechanism to lift the seal tip clear of the floor as soon as the door panel is open by a few mm away from the door frame.
Located seal into 26mmW X 45mmD groove (groove cut by user) use screw fixed in position with set of Stainless Steel Full Sealed End Plate. As drawing as shown below.
It is operated automatically by spring pressure against door jamb on its adjusting knob and self-levelling on uneven floor surfaces.
If used as a system in acoustic sealing, this self levelling seal has
been shown to be an effective acoustic seal.
LY-ASI8100NF has been tested for durability 1,000,000.00 cycles completed without failure.
LY-SI8100NF is design for (50mmThk. Panel and above) single and Double butt hinged door. |
| ■ Install Location: Fixing screw and full sealed stainless steel end plate are supplied, fixing holes predrilled by user |
| ■ Sealing Gap: from 3mm t o 15mm. |
| ■ Product Length: 400mm、600mm、820mm、910mm、1070mm、1200mm、1500mm；Note: each seals length can be (Maximum)cut back 100mm. |
| ■ Outer Color: Carrier Colour: Anodised Satin Clear./Grey |
| ■ Seal Material: Non-Flammable Silicon Rubber. /Brass knob can be adjusted independently, self-levelling on uneven floor surfaces, |

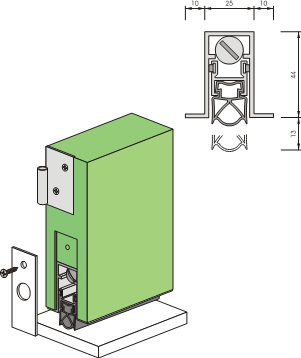

■ Sketch Map:
|
|
|
|
Automatic Drop Door Bottom Fire Seals
|
|
LY-A06NF
|
Face Fixed Automatic Drop Door Seal |
|
|
LY-A068NF
|
Conceal Fixed Automatic Drop Door Seal |
|
|
LY-A08NF
|
Conceal Fixed Automatic Drop Door Seal |
|
|
LY-A086NF
|
Face Fixed Automatic Drop Door Seal |
|
|
LY-A082NF
|
Conceal Fixed Automatic Drop Door Seal |
|
|
LY-A083NF
|
Conceal Fixed Automatic Drop Double Seal Strip Door Bottom Seal |
|
|
LY-A8100NF
|
Heavy Duty Conceal Fixed Automatic Threshold Door Seal |
|
|
LY-A8090NF
|
Heavy Duty Face Fixed Automatic Threshold Door Bottom Seal |
|
|
LY-A08FR
|
Conceal Fixed Fire Rating Automatic Drop Door Bottom Seal |
|
|
Door Flame Non-Flammable Seal Strip
|
|
|
|
LY-LP1513FR
|
Non-Flammable Silicon Hot Smoke Strip Seals |
|
|
Door Flame Fire Intumescet Seal Strip
|
|
|
|
|
|
|
|
LY-LP8810FR
|
Extracted Electrometric Non-Ignition Silicon Strip Seals |
|
|
LY-LP6810FR
|
Extracted Electrometric Non-Flammable Silicon Strip Seals |
|
|
|
