| Product Model: LY-A083SI |
| Order Product
Inquiry Price |
| ■ Product Name: Conceal Fixed Automatic Drop Door Bottom Seal |
■ Product Function:
lexapro side effects after 1 week lexapro side effects swelling buy amoxicillin from canada amoxicillin prescription no insurance contrave weight loss contrave naltrexone sr bupropion sr read where to buy abortion pill in usa buy abortion pill online usa website free prescription cards discount prescription discount coupon read mixing weed and adderall mixing adderall and weed morphine with naltrexone and naloxone naloxone and naltrexone are examples of online generico cialis 20 mg cialis generico koupit cialis online cialis 20mg cena |
■ Product Feature:
The medium temperature smoke, air flow noise, traffic noise, draught, energy saving conceal fixed automatic drop door bottom seal with two silicon rubber seal strip. The spring operation to lift the seal clear of the floor as soon as the door panel is open by a few mm a way from the door frame.
Installation; locate the seal into 65mmW X 30mmD groove fixed with screw supplied.

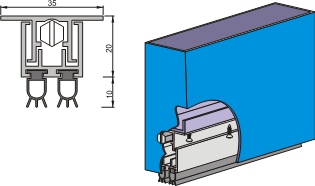

As drawing shown below.
It is operated automatically by spring pressure against door jamb on its adjusting knob.
LY-A083SI has been tested for durability 1,000,000.00 cycles completed without failure.
LY-A083SI is design for Aluminium, Metal and Stainless Steel single and double butt hinged doors.
|
| ■ Install Location: Door Bottom / Screw Fix with Stainless Steel Screw supplied. |
| ■ Sealing Gap: from 3mm t o 15mm |
| ■ Product Length: 400mm、600mm、820mm、910mm、1070mm、1200mm、1500mm；Note: each seals length can be (maximum) cut back 100mm. |
| ■ Outer Color: Carrier Standard Finish: Anodised Satin Clear. / Grey |
| ■ Seal Material: Silicon Rubber / Brass Knob |
■ Sketch Map:
|
|
|
|
