| Product Model: LY-A8100SI |
| Order Product
Inquiry Price |
| ■ Product Name: Heavy Duty Conceal Fixed/Automatic Threshold Door Seal |
■ Product Function:
how to buy abortion pill online buy abortion pill melatonin and pregnancy safety melatonin and pregnancy prednisolon tabletta prednisolon tabletta prednisolon og alkohol prednisolon 25 mg link naloxone and naltrexone are examples of naloxone and naltrexone are examples of tadalafil generico costo cialis generico 10 mg prezzo narcan vs naltrexone narcan vs naltrexone |
■ Product Feature:
The medium temperature smoke, cold and warm air, draught, traffic noise, air flow noise and energy saving, Conceal Fixed Automatic Threshold Door Bottom Seal with Silicon Rubber Seal Strip.The spring mechanize to lift the seal tip clear of the floor as soon as the door panel is open by a few mm away from the door frame. Install the seals into 26mmW X 45mmD groove (groove cut by user) and placed in position, fixed with screw and Full Sealed Stainless Steel End supplied.As drawing shown below. It is operated automatically by spring pressure against door jamb on its adjusting knob and self-levelling on uneven floor surfaces. If used as a system in acoustic sealing, this self levelling seal has been shown to be an effective acoustic seal.
LY-ASI8100SI has been tested for durability 1,000,000.00 cycles
Completed without failure.
LY-SI8100SI is design for (50mmthk and above panel) single and Double butt hinged door. |
| ■ Install Location: Door Bottom / Fixing with screws and Full Sealed Stainless Steel End Plate are supplied, fixing holes predrilled by user |
| ■ Sealing Gap: from 3mm t o 15mm |
| ■ Product Length: 400mm、600mm、820mm、910mm、1070mm、1200mm、1500mm；Note: each seals length can be (maximum) cut back 100mm. |
| ■ Outer Color: Carrier Colour: Anodised Satin Clear.Grey |
| ■ Seal Material: Silicon Rubber. / Brass knob can be adjusted independently, |

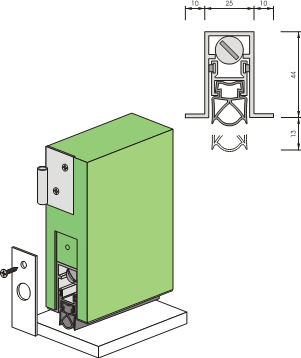

■ Sketch Map:
|
